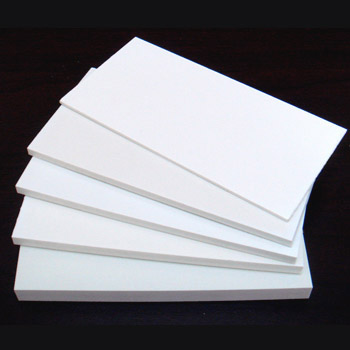

PVC Foam Sheet / Core Material / Hard Foam Sheet / Rigid Foam Sheet


Description:


Our PVC foam sheet is a closed-cell, lightweight, thermoplastic and hard foam material

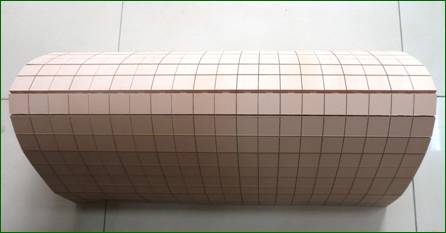

Our PVC foam sheet is a closed-cell, lightweight, thermoplastic and hard foam material. It is able to form 3-dimensional contour. It is a suitable core material for dynamically loaded and shock absorbing sandwich structures.



















Custom design-1

Custom design-2



Product Special Feature:

  • Instead of wood material
  • High strength & rot resistant
  • Good thermal insulation
  • Self-extinguishing
  • Recycled, environmental protection
  • Various, and colorful
  • Available in different hardness and density
  • No slippery, electricity insulation



Product Application:

  • Industrial Parts: Dynamically loaded structures & container
  • Sports: Badminton & Shoes
  • Construction: Structural sandwich panels, interiors, floors & partition walls

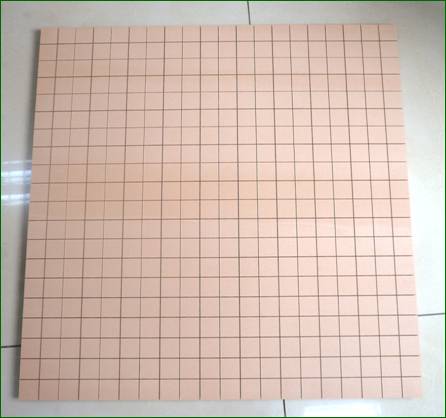

PVC Foam Sheet With Square Groove





Length       To order

Width        To order

 Size Range

Thickness   To order



Weight       To order

Hardness:         65~99 degrees

Colors:             To Order







Test Report by Bureau of Standards, Metrology & Inspection Ministry of Economic Affair, Republic of China

Test Item

Results

Apparent density (CNS 7774)

140kg/m3

Water absorption (CNS 7774)

0.7g/100cm2

Compressive strength (CNS 7774)

12kgf/cm2

Flexural strength (CNS 7774)

15kgf/cm2

Flammability (CNS 7774)



Burning duration

60 sec

Burned distance

45mm

Temperature of deflection

under load (CNS 6683, method B)

41 oC

Flammability (CNS 7614)



Flame application time

10sec

30sec

60sec

Afterflame time (sec)

0

0

0

Afterflame & Afterglow time (sec)

0

0

0

Char length (cm)

7.4

8.7

9.2

Rating of flammability







Thermal conductivity (At mean temp.30 +/-5oC)

0.0317kcal/m.h . oC


SGS & PIDC (Plastic Industry Development Center)Test Report
:


Detection of Radiation


Detection of Radiation Sample card


Test report of Green Building Material-1


Test report of Green Building Material-2


Test report of Green Building Material-3


Test report of Green Building Material-4


Test report of Green Building Material-5


Test report of Green Building Material-6


Test report of Green Building Material-7


Test report of Green Building Material-8


Test report of Green Building Material-9


Test report of Green Building Material-10
