CPS Solar Clamps System

Description:

Add to Inquiry
Send Inquiry
Back

CPS Solar Panel Mid Clamp

An efficiency Solar Panel Clamp System based on private use.
The first BIPV (Building-integrated photovoltaics) structure in Taiwan.
The solar panel directly as roof, transmitting daylight;
and without roofing sheet, reducing heat exhaustion to Solar Panel.
Extension the Life-cycle of Solar Power Generation, it’s practical.
Precise designed, saving materials, Waterproof & Anti-Hurricane,
enhance the safety of structure.

Features of CPS Solar Panel Mid Clamp

An anti-hurricane function Solar Panel Mid Clamp,

qualified the Wind tunnel test of NCSIST*

wind resistant up to V=60m/s (Beaufort scale Grade 17)

*NCSIST: National CHUNG-SHAN Institute of Science and Technology (Taiwan)

BIPV structure, could be without roofing sheets,

transmitting daylight, reduce heat exhaustion.

Maintain the Life-cycle of Solar Power Generation for 20~25 years.

Parallel structure--connect the solar clamps on both sides of the module,

which made a strong structure.

Galvanized steel, Waterproof, No leaking at rainy day.

With design Patents from the U.S. , Japan, and many countries.

Toughness, Waterproof, Anti-Hurricane, Space-Efficient

Design Concept:
After years of research, development & improvement, we have successfully developed a roof-less patented solar clamps system,
which is not only simple and quick to install, but also strong and durable. Customers could save roof covers cost.

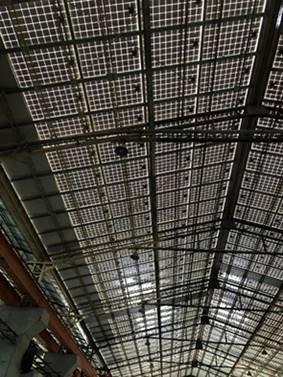

The solar panel is made of glass and will transmit the light. Therefore, during the daytime,
the sunlight could pass through the roofless design roof easily and then save electric fee.
Clean, no spider webs problem and reduce sky lighting boards usage.
The solar supports using standard galvanized steel with Cold Roll Forming processing to enhance the strength of wind resistance.
Wind resistance ability is much better than traditional aluminum supports and price is more competitive than aluminum solar panel support.
CPS solar clamps support is qualified to National CHUNG-SHAN Institute of Science and Technology (Taiwan) to withstand wind speed V=60.6 m/sec for 20 minutes, higher than Saffir-Simpson hurricane wind scale rating 3. (178 ~ 208 km/h, 96 ~ 112 kt, 111 ~ 129 mph).
The clamps are highly corrosion resistance up to 25 years. With its unique design, mass-produced and price advantage,
CPS clamps greatly reduces customers’investment cost.

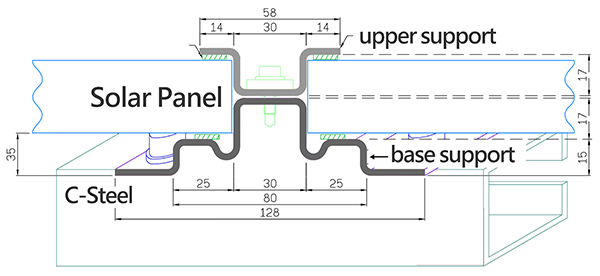

CPS Solar Panel Mid Clamp

upper support	base support

Product Descriptions

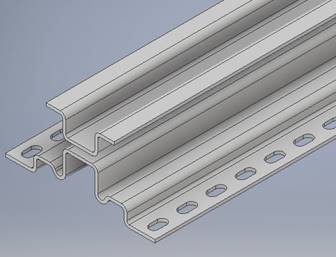

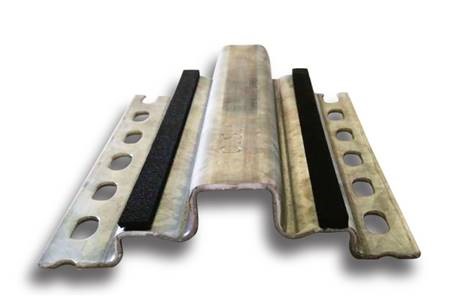

Solar galvanized steel support frame 2.5mm thickness

We own design patents from many countries and more than 20 patents in Taiwan.

For patents details, please refer to our website:www.chps.com.tw

Easy and quick installation to obtain waterproofing feature.

Fit with two roof design constructions: building with waterproof roofless scaffolding covers or with traditional roof covers.

Price Competitive. Special support design to save roof covers & aluminum clamps usage, reduce labors & materials expense.

The insurance premium rate is more favorable because CPS clamps qualified to wind resistance test (V=60.6 m/sec),
saving about 15% rate, compared to the project with traditional roof covers.

The power generation of using CPS solar support project is 5-10% higher than using traditional roof covers project. Investors could earn the cost back very quickly.

The design of roofless covers allows the solar panels to be isolated from the metal supports and make the power generation more stable,
which solve the problem of heat exhaustion caused by the overheating of the solar panels. This prolong the service life of the solar panels.

8. We'll provide any relevant technical consultants regards to the installation of solar panels and CPS metal supports.

Related Components:

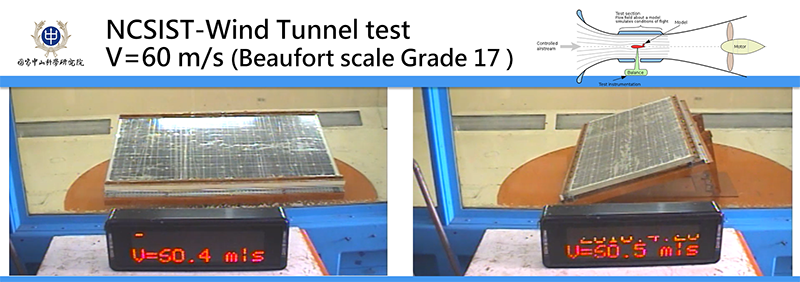

NCSIST Wind Tunnel Test:

Film 1: https://youtu.be/wqFQlxO9YfA

Film 2: https://youtu.be/HbTufahOeGc

Introduction of CPS Solar Clamps System:

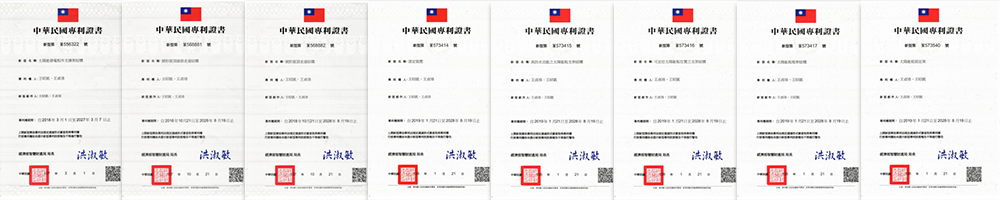

Patents:

Utility Model, No M556322	Utility Model, No M568881	Utility Model, No M568882	Utility Model, No M573414
Utility Model, No M573415	Utility Model, No M573416	Utility Model, No M573417	Utility Model, No M573540
Utility Model, No M573541	Utility Model, No M573542	Utility Model, No M573917	Utility Model, No M535363
Utility Model, No M607277	Invention, No I695576	Invention, No I696746	Invention, No I702329
United State Patent No US10,917,041 B2	Utility Model, No M583872	Utility Model, No M584066	Utility Model, No M584067
Utility Model, No M584068	Utility Model, No M586738	Utility Model, No M588716	Utility Model, No M588924
Utility Model, No M608987	Utility Model, No M609008	Utility Model, No M612775	Invention, No I703298
Invention, No I703810	Invention, No I725926	Invention, No I731829	Invention, No I745235
Design No D214460	Brunei Darussalam Patent No BN/N/2019/0092
